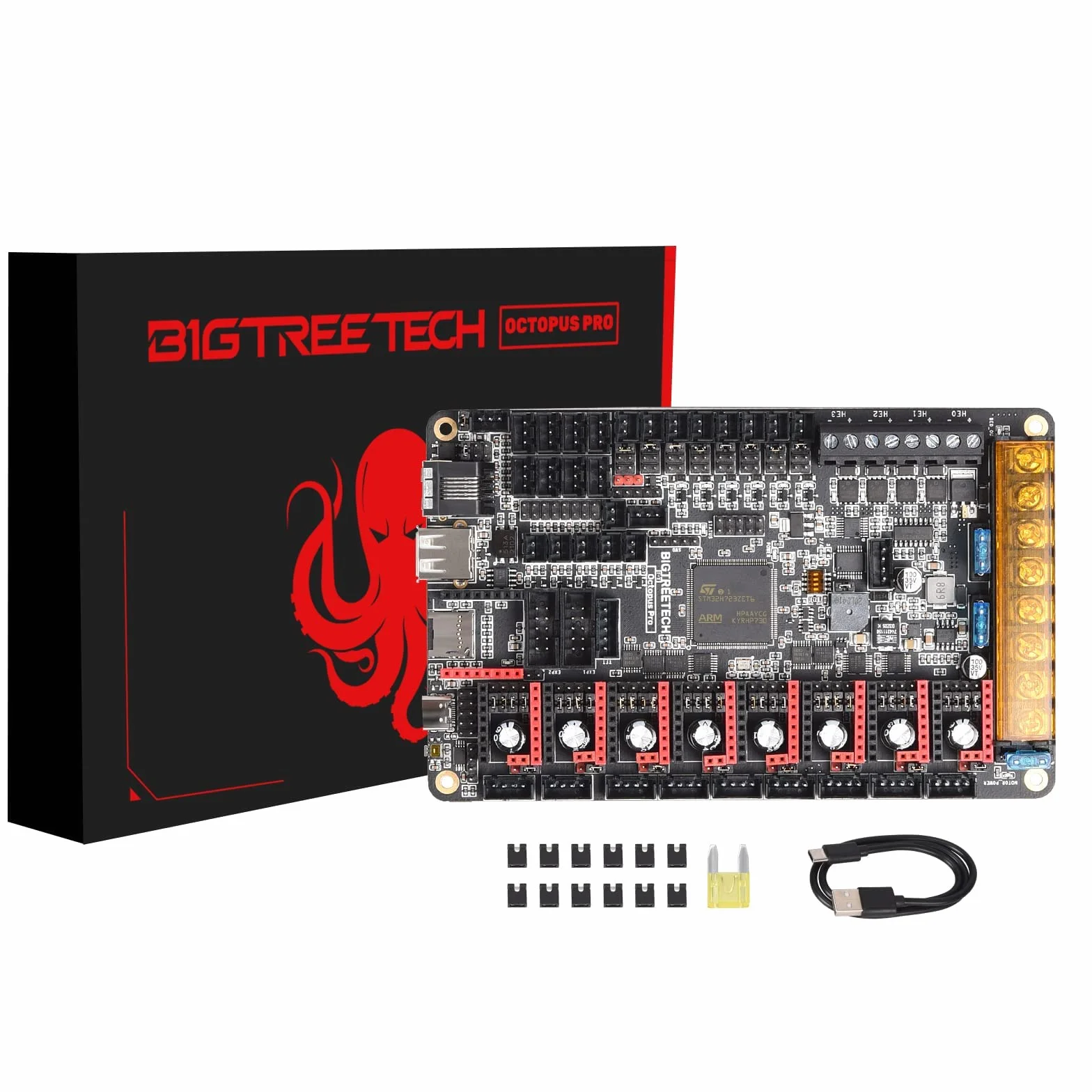

BIGTREETECH Octopus Pro V1.0.1(H723) 32bit Control Board New Upgrade 550Hz 8 Stepper Motor Driver Support Klipper Marlin High-Speed Printing Support Raspberry Pi Octoprint System DIY 3D Printer Board

Color: negro
Marca: BIQU
Material: Plástico
Tipo de pantalla: LED o similar
Número de paquetes: 1

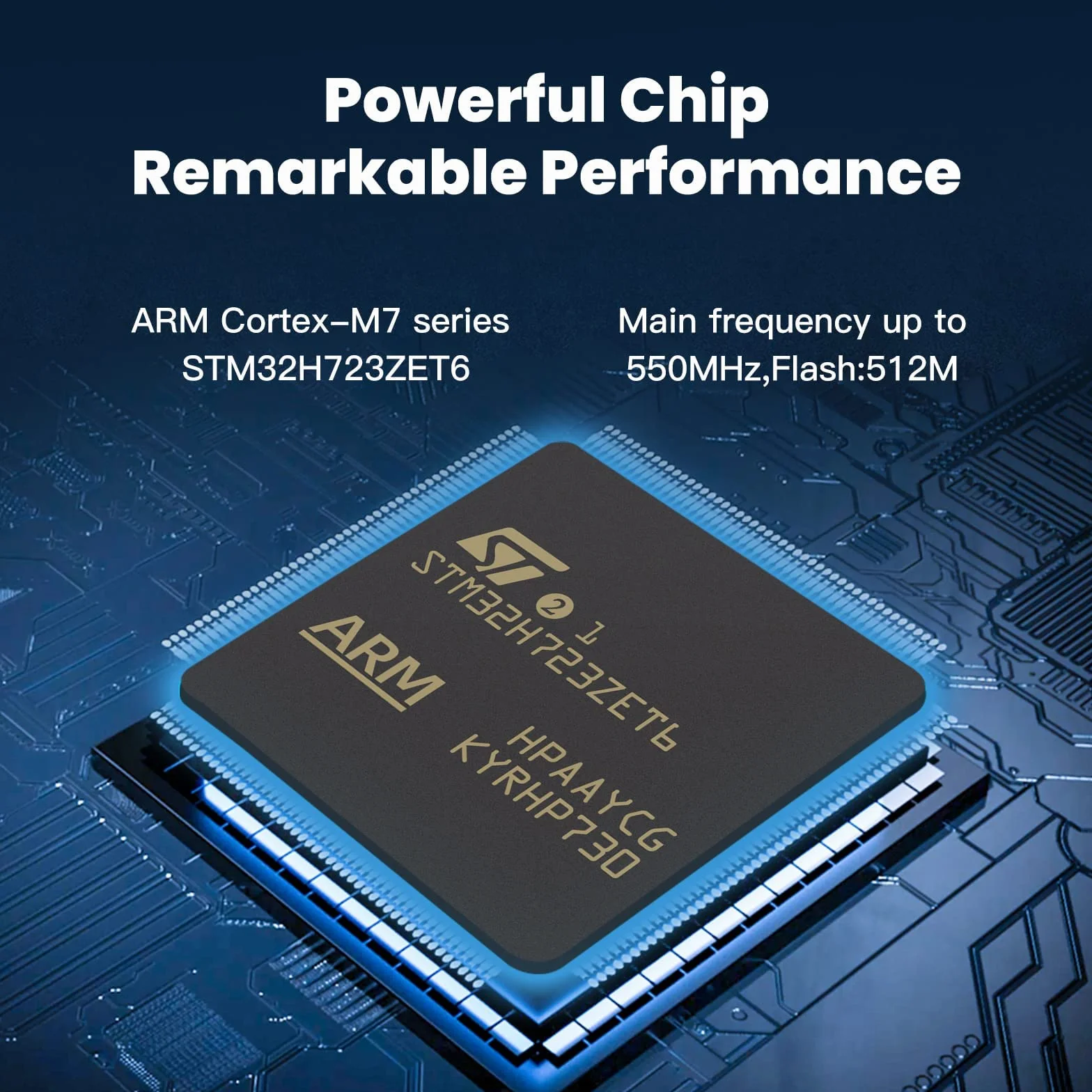

- 【Main Control Chip】Octopus pro board adopts the ARM Cortex-M7 series, STM32H723ZET6, main frequency up to 550MHz, Processing is more stable and fast.
- 【About Firmware】Supports Marlin and Klipper, the best choice for Klipper high-speed printing,meet the individual need of DIY users,support Operation systems Raspberry Pi / Octoprint.

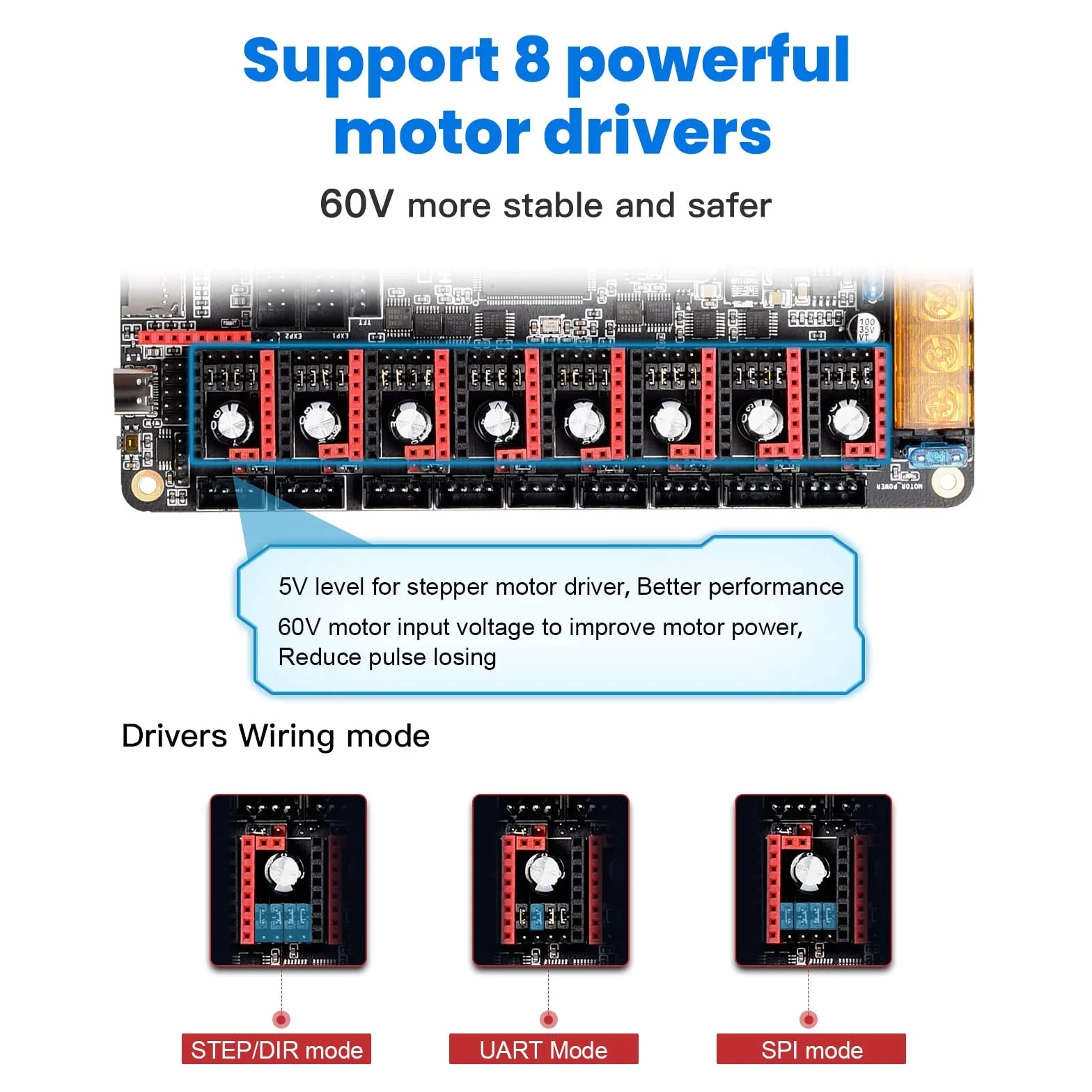

- 【Stepper motor Upgraded】Support 8 axis powerful motor driver,support 5V level for stepper motor driver ,better performance. support max 60V motor input voltage to inprove motor power,reduce pulse losing. Support STEP/DIR/UART/SPI Mode.

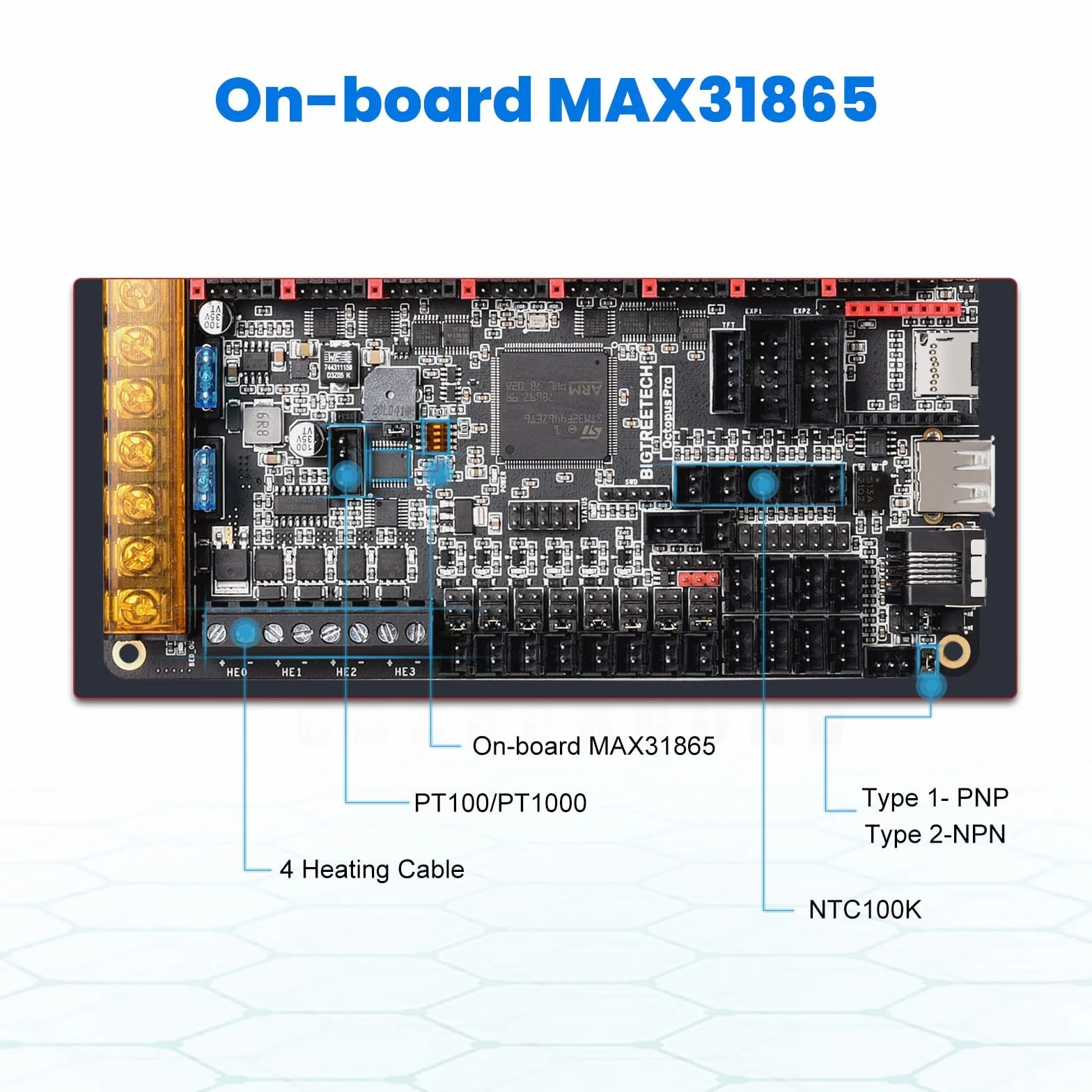

- 【Onboard MAX31865 】Support 2/4-wire PT100/PT1000 temperature measurement without welding (the soldering resistance can also support 3-wire PT100/PT1000 temperature measurement)

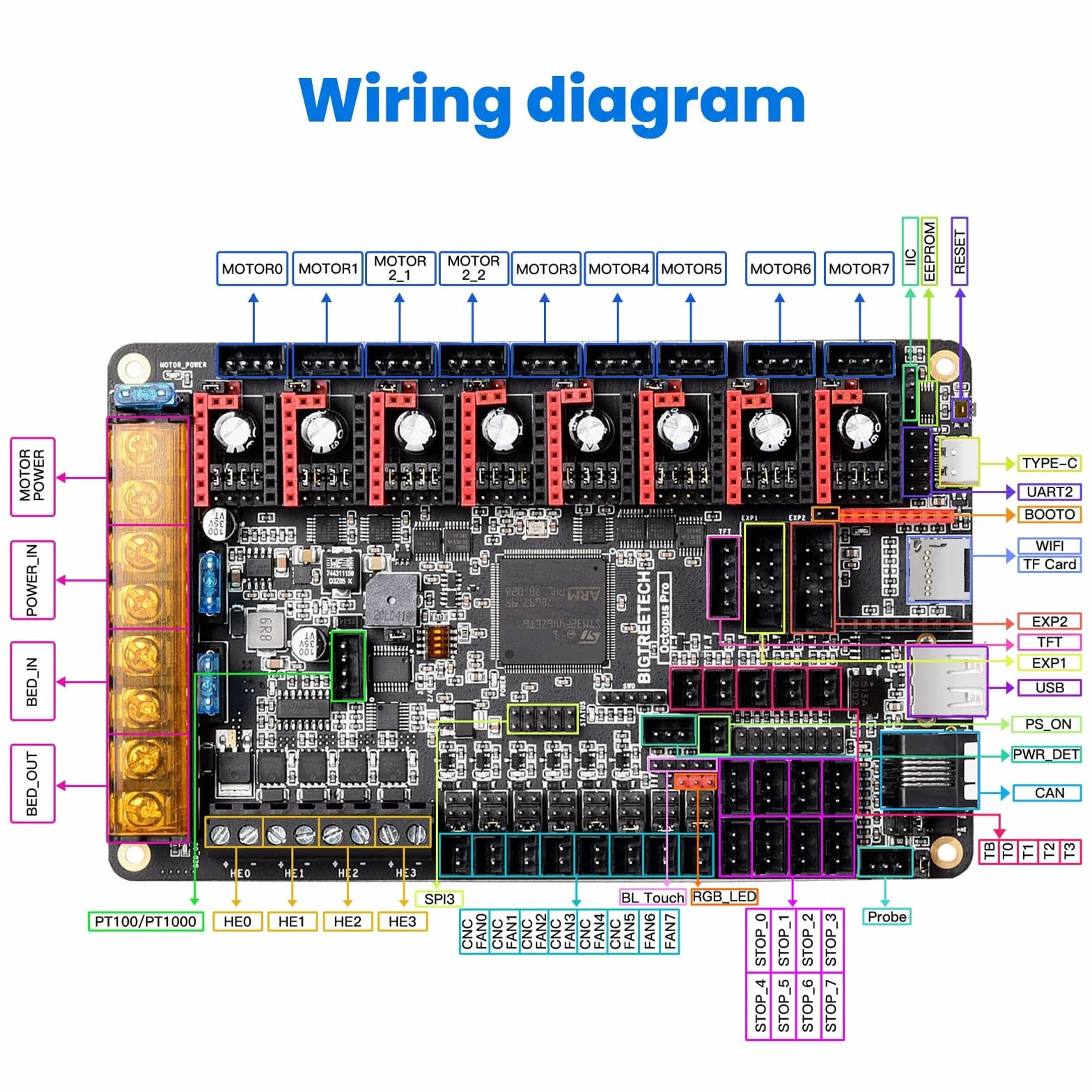

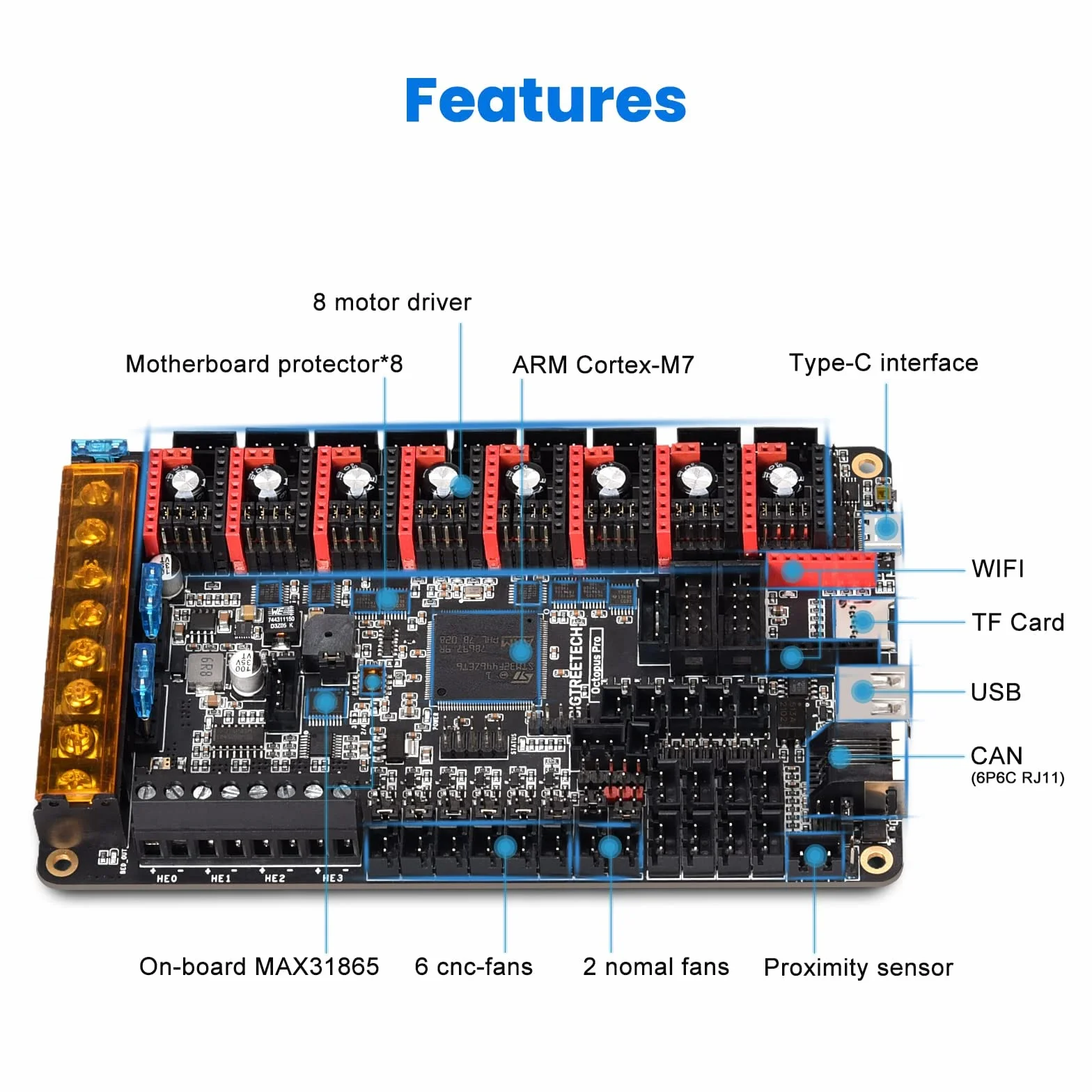

- 【Expanded function interface】Bltouch,Resume printing, wifi ,RGB Light,Filament runout detection.Power shundown,Proximity sensor...etc.
