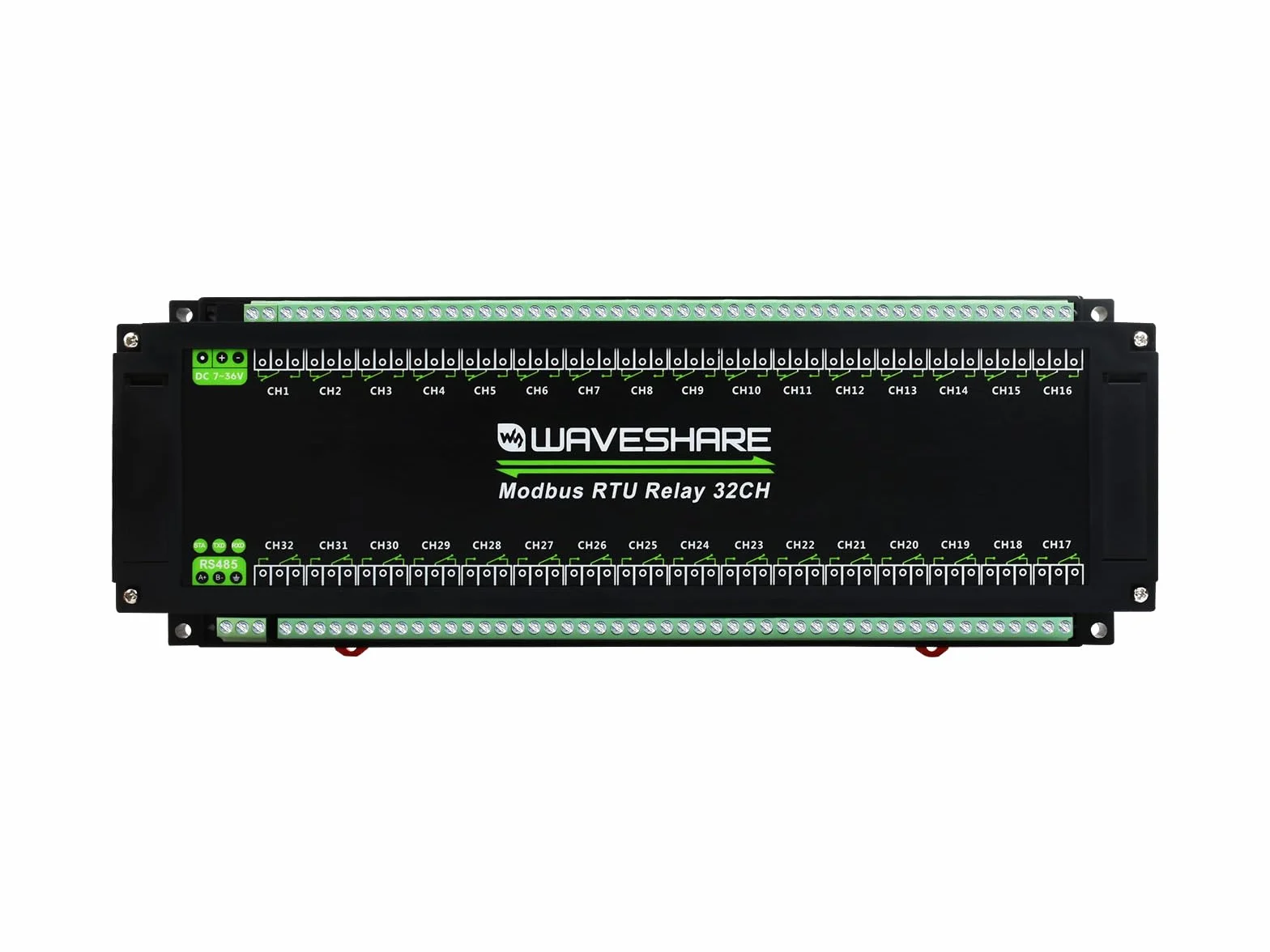

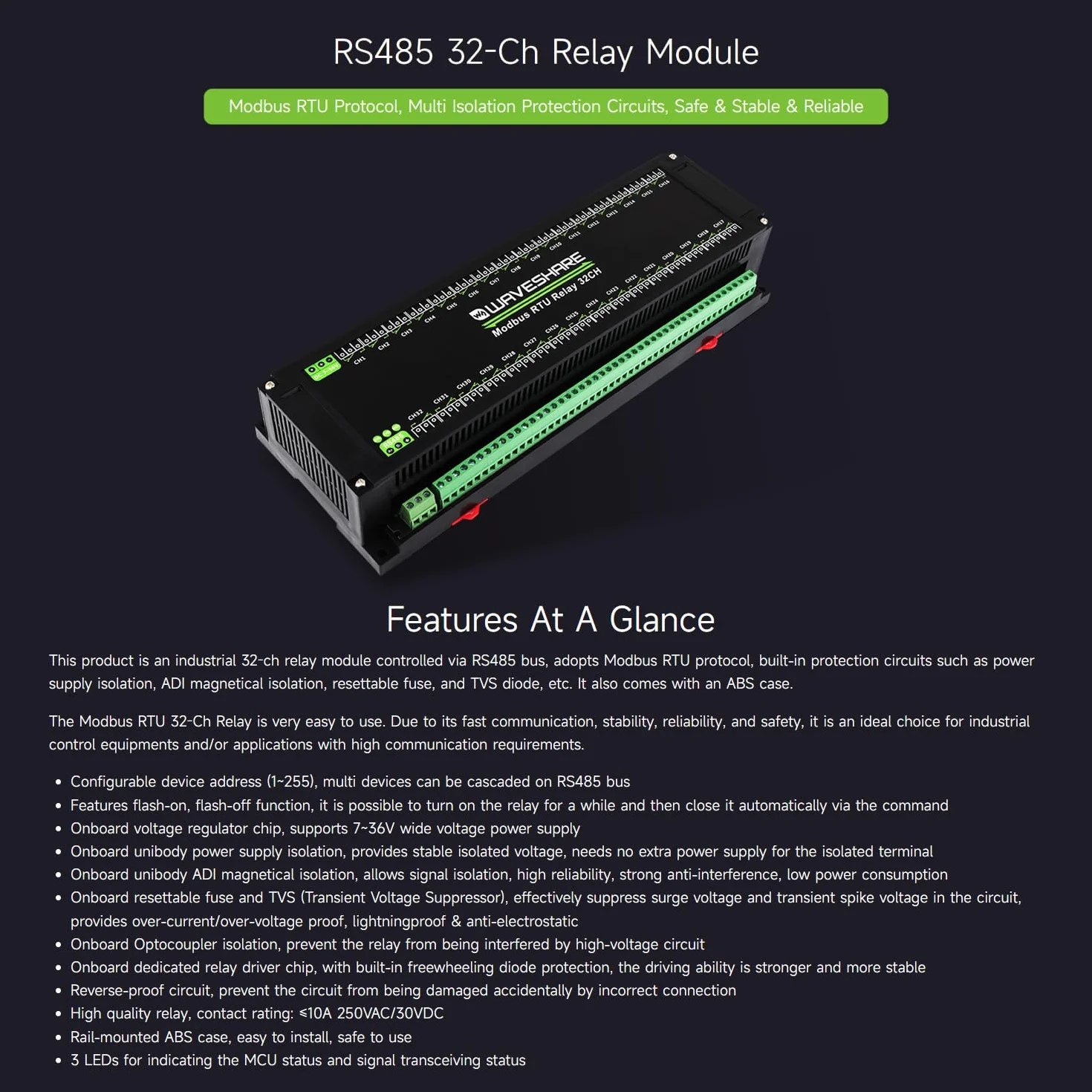

Waveshare Modbus RTU 32-Ch Relay Module, RS485 Interface, with Multiple Isolation Protection Circuits, Mainly Used for Industrial Control, Smart Home, Smart Agriculture, Breeding & Farming

Tipo de conector: Atornillado
Material de contacto: Plata
Tipo de contacto: Normal abierto
Corriente nominal: 10 Amperios
Tipo de montaje: Montaje en carril DIN
Marca: Waveshare
Modo de funcionamiento: Automático
Vataje: 12.96 vatios
Resistencia de bobina: 5,1 Kiloohmios
Voltaje de la bobina: 24 Voltios (CC)

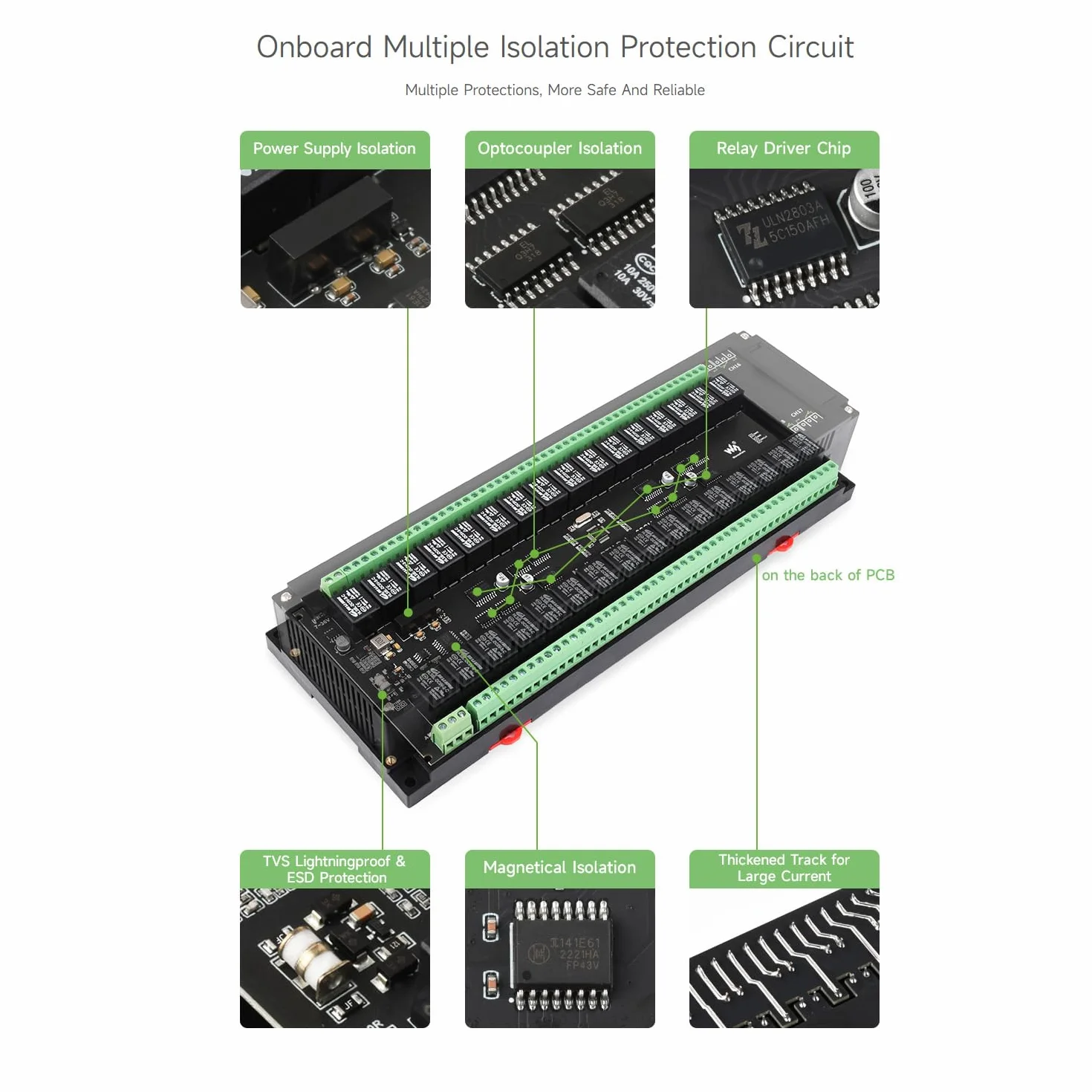

- [Onboard Multiple Isolation Protection Circuit] Multiple Protections, More Safe And Reliable
- [Rail-Mount Case Design] Rail-Mounted ABS Protective Enclosure, Easy To Install, Safe To Use

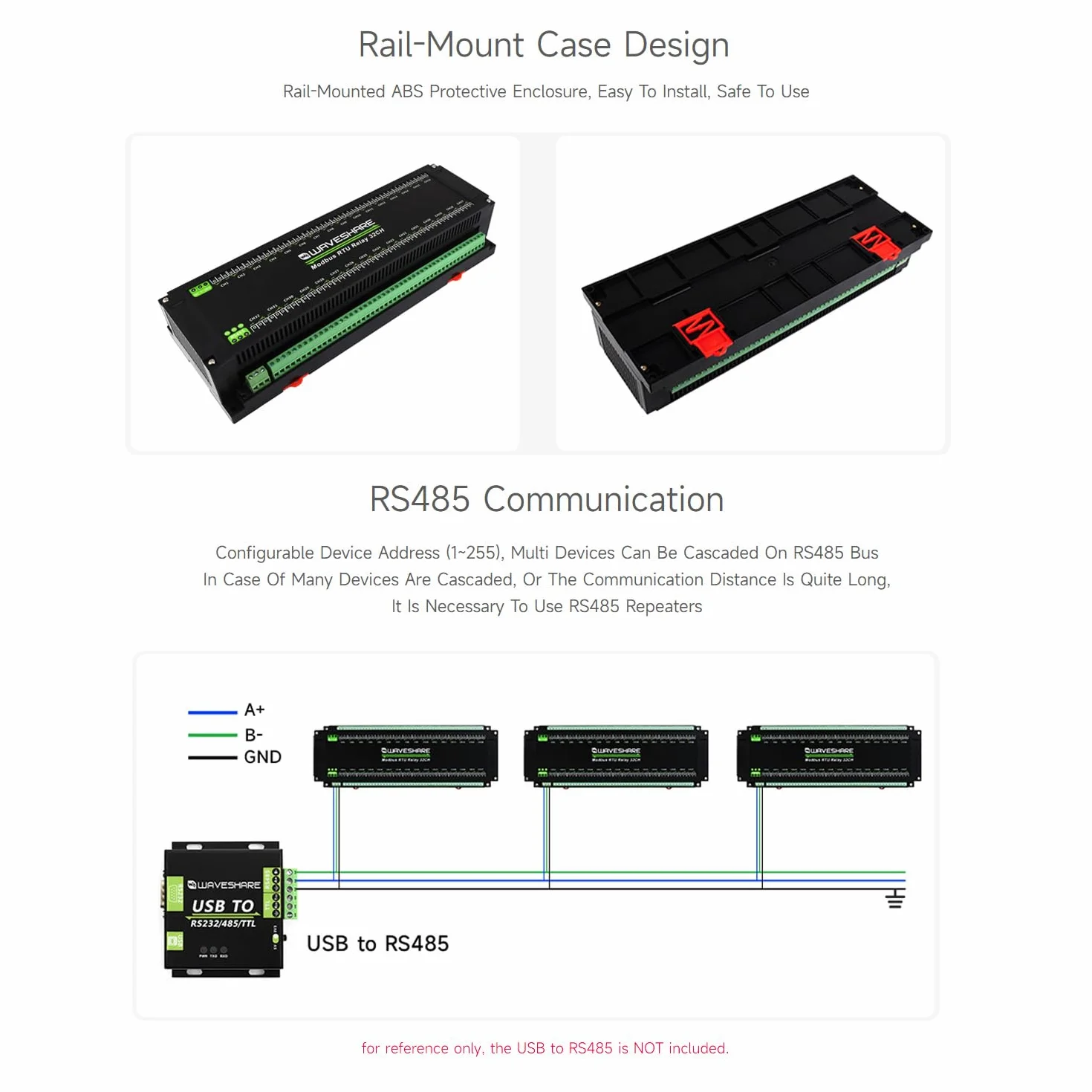

- [RS485 Communication] Configurable Device Address (1~255), Multi Devices Can Be Cascaded On RS485 Bus. In Case Of Many Devices Are Cascaded, Or The Communication Distance Is Quite Long, It Is Necessary To Use RS485 Repeaters

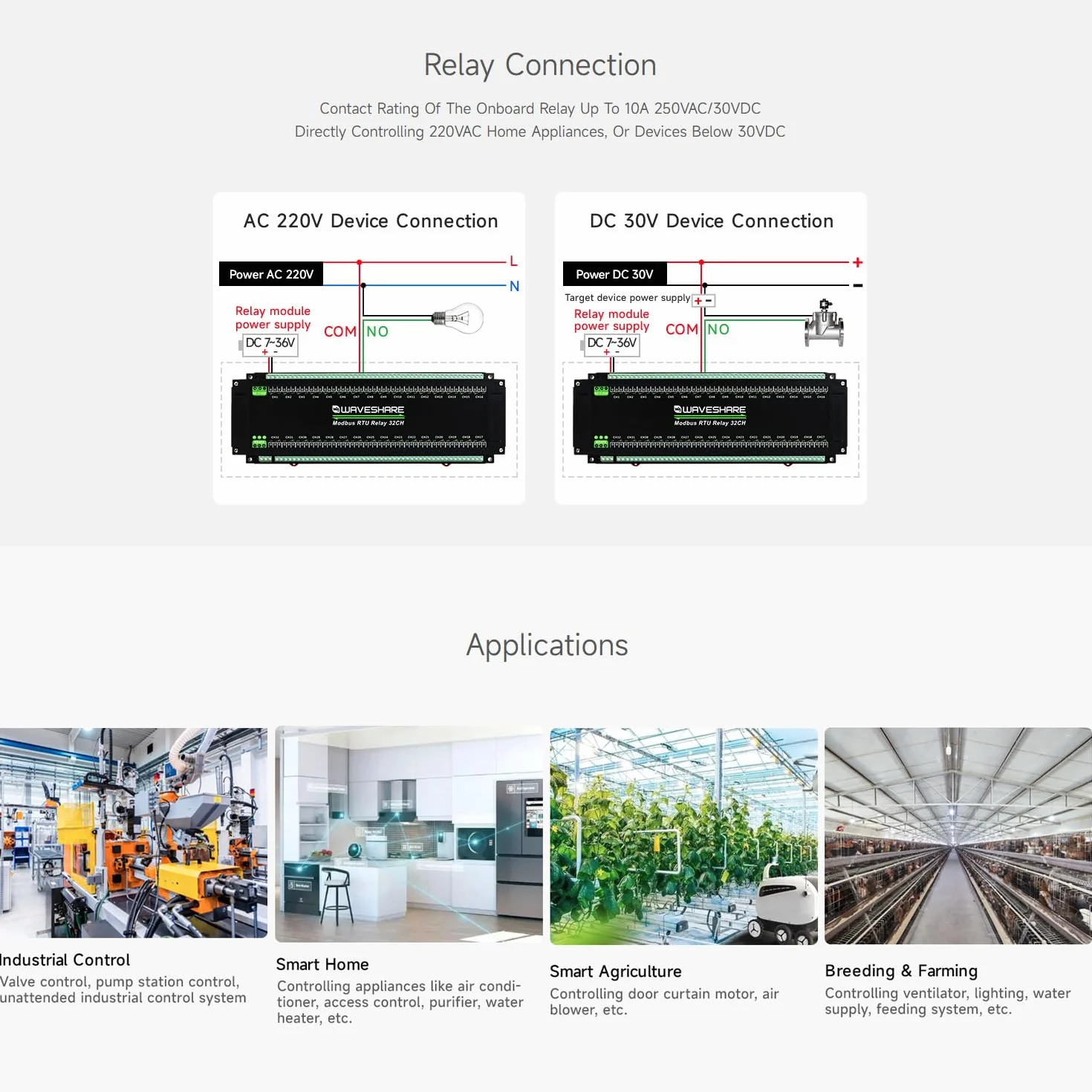

- [Relay Connection] Contact Rating Of The Onboard Relay Up To 10A 250VAC/30VDC. Directly Controlling 220VAC Home Appliances, Or Devices Below 30VDC
- [Applications]1. Industrial Control. Valve control, pump station control, unattended industrial control system. 2. Smart Home. Controlling appliances like air conditioner, access control, purifier, water heater, etc. 3. Smart Agriculture. Controlling door curtain motor, air blower, etc. 4. Breeding & Farming. Controlling ventilator, lighting, water supply, feeding system, etc
